HF

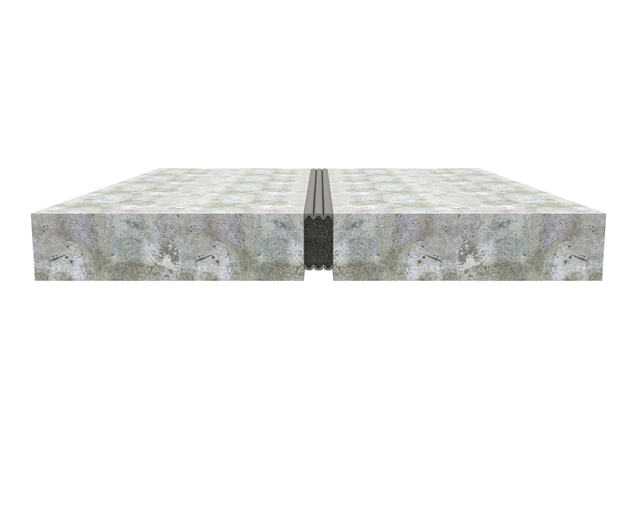

This cover is comprised of a high-density, open micro-cell-impregnated polyurethane foam. It is coated with a factory-applied silicone. Proper installations result in a water-tight, airtight, dust-proof, sound-proof, and insulated primary seal for horizontal expansion joint conditions. Joint sizes range from 24.5mm (1") to 101.6mm (4"). Contact the factory for larger sizes or custom applications.
We’re here to help.
Want assistance? It’s easy to get in touch with us - just click the button below.
Many of our product solutions offer choices for customisation, and we would love to talk you through your options. Let’s start (or continue) the conversation today!
Interested in this Product?
We would love to help you! For more information and to purchase, please contact us by requesting a quote below and we will be in touch with you shortly.
We’re here to help.
Want assistance? It’s easy to get in touch with us - just click the button below.
Many of our product solutions offer choices for customisation, and we would love to talk you through your options. Let’s start (or continue) the conversation today!
Finishes
-
Deck Gray
Traffic Grade Silicone (HF and HFR)
Performance Data
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height | Seal Depth |
|---|---|---|---|---|---|---|---|
| HF-100 | 1.00" (25 mm) | 0.50" (13 mm) | 1.50" (38 mm) | 1.00" (25 mm) | N/A | N/A | 2.00" (51 mm) |
| HF-150 | 1.50" (38 mm) | 0.75" (19 mm) | 2.25" (57 mm) | 1.50" (38 mm) | N/A | N/A | 2.50" (64 mm) |
| HF-200 | 2.00" (51 mm) | 1.00" (25 mm) | 3.00" (76 mm) | 2.00" (51 mm) | N/A | N/A | 2.50" (64 mm) |
| HF-250 | 2.50" (64 mm) | 1.25" (32 mm) | 3.75" (95 mm) | 2.50" (64 mm) | N/A | N/A | 2.75" (70 mm) |
| HF-300 | 3.00" (76 mm) | 1.50" (38 mm) | 4.50" (114 mm) | 3.00" (76 mm) | N/A | N/A | 3.25" (83 mm) |
| HF-350 | 3.50" (89 mm) | 1.75" (44 mm) | 5.25" (133 mm) | 3.50" (89 mm) | N/A | N/A | 3.50" (89 mm) |
| HF-400 | 4.00" (102 mm) | 2.00" (51 mm) | 6.00" (152 mm) | 4.00" (102 mm) | N/A | N/A | 4.00" (102 mm) |
