GTP

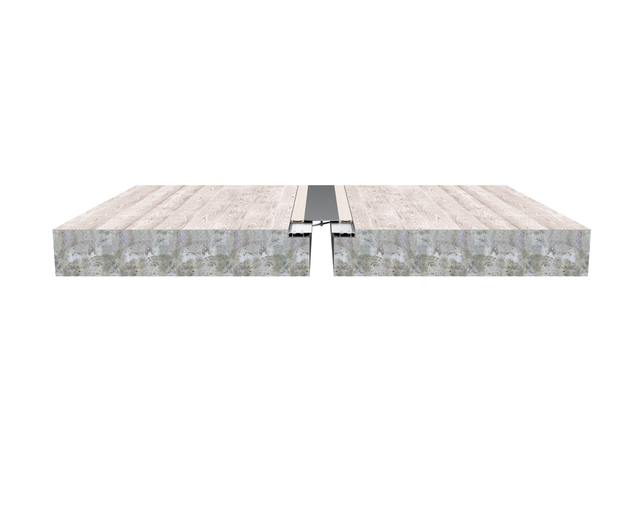

This dual-gasket, flush floor cover is ideal for interior areas with more extensive movement requirements. Lightweight wheeled equipment can be rolled across this hygienic seal. The softer centre section of the gasket allows full movement and comes in four standard colour options. Joint sizes range from 50.8mm to 101.6mm. Contact the factory for larger sizes or custom applications.
We’re here to help.
Want assistance? It’s easy to get in touch with us - just click the button below.
Many of our product solutions offer choices for customisation, and we would love to talk you through your options. Let’s start (or continue) the conversation today!
Interested in this Product?
We would love to help you! For more information and to purchase, please contact us by requesting a quote below and we will be in touch with you shortly.
We’re here to help.
Want assistance? It’s easy to get in touch with us - just click the button below.
Many of our product solutions offer choices for customisation, and we would love to talk you through your options. Let’s start (or continue) the conversation today!
Finishes
-
Mill
Expansion Joint Standard Finish
-
#232 White
-
#270 Greige
-
#136 Gray
-
#108 Black
-
#764 Platinum
Gasket Colours
Performance Data
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| GTP-200 | 2.00" (51 mm) | 1.25" (32 mm) | 3.75" (95 mm) | 6.50" (165 mm) | 2.25" (57 mm) | 0.63" (16 mm) |
| GTP-300 | 3.00" (76 mm) | 1.25" (32 mm) | 6.00" (152 mm) | 10.00" (254 mm) | 3.50" (89 mm) | 0.63" (16 mm) |
| GTP-400 | 4.00" (102 mm) | 1.25" (32 mm) | 6.25" (159 mm) | 11.00" (279 mm) | 3.50" (89 mm) | 0.63" (16 mm) |
| GTPW-200 | 2.00" (51 mm) | 1.00" (25 mm) | 3.00" (76 mm) | 4.25" (108 mm) | 2.25" (57 mm) | 0.63" (16 mm) |
| GTPW-300 | 3.00" (76 mm) | 1.50" (38 mm) | 4.50" (114 mm) | 6.50" (165 mm) | 3.50" (89 mm) | 0.63" (16 mm) |
| GTPW-400 | 4.00" (102 mm) | 2.50" (64 mm) | 5.50" (140 mm) | 7.50" (191 mm) | 3.50" (89 mm) | 0.63" (16 mm) |
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| GTP-200HD | 2.00" (51 mm) | 1.25" (32 mm) | 3.75" (95 mm) | 6.50" (165 mm) | 2.25" (57 mm) | 0.63" (16 mm) |
| GTP-300HD | 3.00" (76 mm) | 1.25" (32 mm) | 6.00" (152 mm) | 10.00" (254 mm) | 3.50" (89 mm) | 0.63" (16 mm) |
| GTP-400HD | 4.00" (102 mm) | 1.25" (32 mm) | 6.25" (159 mm) | 11.00" (279 mm) | 3.50" (89 mm) | 0.63" (16 mm) |
| GTPW-200HD | 2.00" (51 mm) | 1.00" (25 mm) | 3.00" (76 mm) | 4.25" (108 mm) | 2.25" (57 mm) | 0.63" (16 mm) |
| GTPW-300HD | 3.00" (76 mm) | 1.50" (38 mm) | 4.50" (114 mm) | 6.50" (165 mm) | 3.50" (89 mm) | 0.63" (16 mm) |
| GTPW-400HD | 4.00" (102 mm) | 2.50" (64 mm) | 5.50" (140 mm) | 7.50" (191 mm) | 3.50" (89 mm) | 0.63" (16 mm) |
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| GTPM-200 | 2.00" (51 mm) | 1.00" (25 mm) | 3.00" (76 mm) | 4.25" (108 mm) | 2.25" (57 mm) | 0.63" (16 mm) |
| GTPM-300 | 3.00" (76 mm) | 1.50" (38 mm) | 4.50" (114 mm) | 6.50" (165 mm) | 3.50" (89 mm) | 0.63" (16 mm) |
| GTPM-400 | 4.00" (102 mm) | 2.50" (64 mm) | 5.50" (140 mm) | 7.50" (191 mm) | 3.50" (89 mm) | 0.63" (16 mm) |
